Material :

Stainless Steel, Low Carbon Steel, Brass, Copper, Aluminum, Galvanized Steel, Titanium, Nickel Sheet etc.

Expanding Shapes / Design :

Diamond, Square, Hexagonal, Grating, Half Round etc.

Application :

This product is everlasting, widely used in architectural decoration, filters, basket, air filtration unit, medicines, machine guards, animal cages, protecting of electrical equipment window, crane walk way, safety doors, room dividers, decorative ceiling, highway fencing, civil works, fan covers/ guard, building plaster trims.

Expanded Metal Benefits :

Expanded metal has a wide range of products and designs, which makes it so versatile and likable for many uses and applications. It is manufactured from single piece of metal sheet. It can be welded as per requirement, can be deep drawn and can be folded also.

Minimum Waste in the process of making expanded metal because it involves slitting and stretching material to create holes rather than punching it out.

Cost Saving is also a major benefit of Expanded metal as compared to other type of processes because it doesn't generate scrap.

Aesthetics through various angles best illustrate t he visual properties of expanded metal and it can be further enhanced by use of glass, plastics and other composites which can be incorporated into, or attached to, meshes for increase of strength, security and aesthetics. The expanded metal can be further beautified by various process of coloring such as powder coating, anodizing, hot dip coating etc.

Strength to Weight Ratio of expanded metal is an ideal light weighting solution whilst also maintaining strength.

Anti-Skid The knuckles formed by expanding metal give sound grip underfoot, particularly beneficial when used in stair treads, ramps and walkways.

Expanded Metal Terminology:
• SWD: Short way of Diamond
• LWD: Long Way of Diamond
• BOND: Where two strand intersect.
• Strand Width (Dent): Length of the metal used to produce one strand.
• Strand Thickness: Guage thickness.

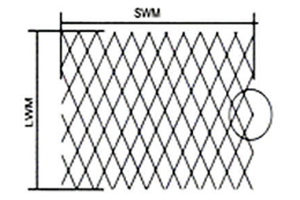

• LWM (width): Mesh sheet size, the distance of LWD direction.
• SWM (length): Mesh sheet size, the distance of SWD direction.

Technical Notes:
• Standard Width: 900mm, 1250mm, 1500mm
• Can be available in customized length as wel l as in coil form.
• Maximum Thickness: 6mm
